Product features

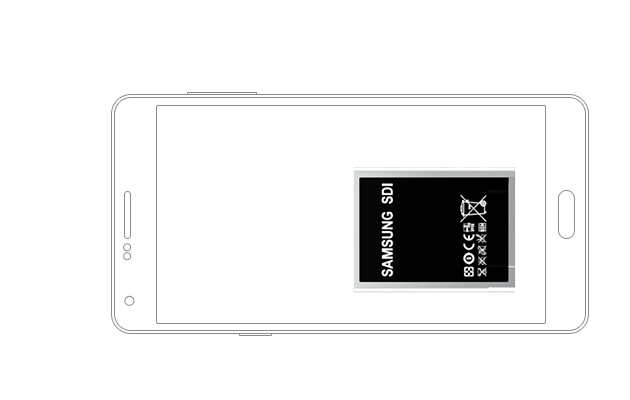

It’s the perfect solution for a Mobile Phone
-
Longer battery lifeSamsung SDI is developing prismatic- and polymer-type batteries of the highest energy density, having an increased capacity for a cell of the same size and consequentially increased hours of mobile phone usage.
-
Smaller volume and weightBased on a high energy density-based design, Samsung SDI is producing the slimmest and lightest battery that lasts longer at the same time.
-
Improved quality and safetySamsung SDI is producing products with exceptional safety via its proprietary high-safety cell design and stable production process.
Product specifications
-
Prismatic Cell
Show specs
Cell Model, Type, Thick/Diameter(mm), Width(mm), Height(mm), Capacity(mAh), Nominal Voltage(V), Energy(Wh) Cell Model Type Thick/Diameter
(mm)Width
(mm)Height
(mm)Capacity
(mAh)Nominal
Voltage(V)Energy
(Wh)Cell Model ICP395158 Type Prismatic Thick/Diameter (mm) 3.9 Width (mm) 51 Height (mm) 58 Capacity (mAh) 1,500 Nominal Voltage(V) 3.80 Energy (Wh) 5.70 Cell Model ICP404251 Type Prismatic Thick/Diameter (mm) 4 Width (mm) 42 Height (mm) 51 Capacity (mAh) 1,030 Nominal Voltage(V) 3.80 Energy (Wh) 3.91 Cell Model ICP405158 Type Prismatic Thick/Diameter (mm) 4 Width (mm) 51 Height (mm) 58 Capacity (mAh) 1,540 Nominal Voltage(V) 3.80 Energy (Wh) 5.85 Cell Model ICP405362 Type Prismatic Thick/Diameter (mm) 4 Width (mm) 53 Height (mm) 62 Capacity (mAh) 1,700 Nominal Voltage(V) 3.80 Energy (Wh) 6.46 Cell Model ICP415168 Type Prismatic Thick/Diameter (mm) 4.1 Width (mm) 51 Height (mm) 68 Capacity (mAh) 1,900 Nominal Voltage(V) 3.80 Energy (Wh) 7.22 Cell Model ICP434354 Type Prismatic Thick/Diameter (mm) 4.3 Width (mm) 43 Height (mm) 54 Capacity (mAh) 1,230 Nominal Voltage(V) 3.70 Energy (Wh) 4.55 Cell Model ICP443858 Type Prismatic Thick/Diameter (mm) 4.4 Width (mm) 38 Height (mm) 58 Capacity (mAh) 1,220 Nominal Voltage(V) 3.70 Energy (Wh) 4.51 Cell Model ICP444355 Type Prismatic Thick/Diameter (mm) 4.4 Width (mm) 43 Height (mm) 55 Capacity (mAh) 1,330 Nominal Voltage(V) 3.70 Energy (Wh) 4.92 Cell Model ICP446584 Type Prismatic Thick/Diameter (mm) 4.4 Width (mm) 65 Height (mm) 84 Capacity (mAh) 3,200 Nominal Voltage(V) 3.80 Energy (Wh) 12.16 Cell Model ICP463446 Type Prismatic Thick/Diameter (mm) 4.6 Width (mm) 34 Height (mm) 46 Capacity (mAh) 920 Nominal Voltage(V) 3.70 Energy (Wh) 3.40 Cell Model ICP463450 Type Prismatic Thick/Diameter (mm) 4.6 Width (mm) 34 Height (mm) 50 Capacity (mAh) 970 Nominal Voltage(V) 3.70 Energy (Wh) 3.59 Cell Model ICP463651 Type Prismatic Thick/Diameter (mm) 4.6 Width (mm) 36 Height (mm) 51 Capacity (mAh) 1,030 Nominal Voltage(V) 3.70 Energy (Wh) 3.81 Cell Model ICP464656 Type Prismatic Thick/Diameter (mm) 4.6 Width (mm) 46 Height (mm) 56 Capacity (mAh) 1,530 Nominal Voltage(V) 3.70 Energy (Wh) 5.66 Cell Model ICP464665 Type Prismatic Thick/Diameter (mm) 4.6 Width (mm) 46 Height (mm) 65 Capacity (mAh) 1,670 Nominal Voltage(V) 3.70 Energy (Wh) 6.18 Cell Model ICP465156 Type Prismatic Thick/Diameter (mm) 4.6 Width (mm) 51 Height (mm) 56 Capacity (mAh) 1,740 Nominal Voltage(V) 3.80 Energy (Wh) 6.61 Cell Model ICP474350 Type Prismatic Thick/Diameter (mm) 4.7 Width (mm) 43 Height (mm) 50 Capacity (mAh) 1,230 Nominal Voltage(V) 3.70 Energy (Wh) 4.55 Cell Model ICP474354 Type Prismatic Thick/Diameter (mm) 4.7 Width (mm) 43 Height (mm) 54 Capacity (mAh) 1,370 Nominal Voltage(V) 3.70 Energy (Wh) 5.07 Cell Model ICP474862 Type Prismatic Thick/Diameter (mm) 4.7 Width (mm) 48 Height (mm) 62 Capacity (mAh) 1,730 Nominal Voltage(V) 3.70 Energy (Wh) 6.55 Cell Model ICP484462 Type Prismatic Thick/Diameter (mm) 4.8 Width (mm) 44 Height (mm) 62 Capacity (mAh) 1,620 Nominal Voltage(V) 3.70 Energy (Wh) 5.99 Cell Model ICP503480 Type Prismatic Thick/Diameter (mm) 5 Width (mm) 34 Height (mm) 80 Capacity (mAh) 1,800 Nominal Voltage(V) 3.80 Energy (Wh) 6.84 Cell Model ICP514657 Type Prismatic Thick/Diameter (mm) 5.1 Width (mm) 46 Height (mm) 57 Capacity (mAh) 1,860 Nominal Voltage(V) 3.80 Energy (Wh) 7.07 Cell Model ICP515155 Type Prismatic Thick/Diameter (mm) 5.1 Width (mm) 51 Height (mm) 55 Capacity (mAh) 1,950 Nominal Voltage(V) 3.80 Energy (Wh) 7.41 Cell Model ICP515161 Type Prismatic Thick/Diameter (mm) 5.1 Width (mm) 51 Height (mm) 61 Capacity (mAh) 2,100 Nominal Voltage(V) 3.80 Energy (Wh) 7.98 Cell Model ICP533640 Type Prismatic Thick/Diameter (mm) 5.3 Width (mm) 36 Height (mm) 40 Capacity (mAh) 920 Nominal Voltage(V) 3.70 Energy (Wh) 3.40 Cell Model ICP535156 Type Prismatic Thick/Diameter (mm) 5.3 Width (mm) 51 Height (mm) 56 Capacity (mAh) 2,000 Nominal Voltage(V) 3.80 Energy (Wh) 7.60 Cell Model ICP535164 Type Prismatic Thick/Diameter (mm) 5.3 Width (mm) 51 Height (mm) 64 Capacity (mAh) 2,300 Nominal Voltage(V) 3.80 Energy (Wh) 8.74 Cell Model ICP545165 Type Prismatic Thick/Diameter (mm) 5.4 Width (mm) 51 Height (mm) 65 Capacity (mAh) 2,450 Nominal Voltage(V) 3.80 Energy (Wh) 9.31 Cell Model ICP553443 Type Prismatic Thick/Diameter (mm) 5.5 Width (mm) 34 Height (mm) 43 Capacity (mAh) 930 Nominal Voltage(V) 3.70 Energy (Wh) 3.44 Cell Model ICP553446 Type Prismatic Thick/Diameter (mm) 5.5 Width (mm) 34 Height (mm) 46 Capacity (mAh) 1,040 Nominal Voltage(V) 3.70 Energy (Wh) 3.85 Cell Model ICP553450 Type Prismatic Thick/Diameter (mm) 5.5 Width (mm) 34 Height (mm) 50 Capacity (mAh) 1,160 Nominal Voltage(V) 3.70 Energy (Wh) 4.29 Cell Model ICP565154 Type Prismatic Thick/Diameter (mm) 5.6 Width (mm) 51 Height (mm) 54 Capacity (mAh) 2,040 Nominal Voltage(V) 3.80 Energy (Wh) 7.75 Cell Model ICP565156 Type Prismatic Thick/Diameter (mm) 5.6 Width (mm) 51 Height (mm) 56 Capacity (mAh) 2,100 Nominal Voltage(V) 3.80 Energy (Wh) 7.98 Cell Model ICP575673 Type Prismatic Thick/Diameter (mm) 5.7 Width (mm) 56 Height (mm) 73 Capacity (mAh) 3,100 Nominal Voltage(V) 3.80 Energy (Wh) 11.78 Cell Model ICP596080 Type Prismatic Thick/Diameter (mm) 5.9 Width (mm) 60 Height (mm) 80 Capacity (mAh) 3,780 Nominal Voltage(V) 3.80 Energy (Wh) 14.36 Cell Model ICP603443 Type Prismatic Thick/Diameter (mm) 6 Width (mm) 34 Height (mm) 43 Capacity (mAh) 1,040 Nominal Voltage(V) 3.70 Energy (Wh) 3.85 Cell Model ICP625244 Type Prismatic Thick/Diameter (mm) 6.2 Width (mm) 52 Height (mm) 44 Capacity (mAh) 1,820 Nominal Voltage(V) 3.80 Energy (Wh) 6.92 Cell Model ICP635464 Type Prismatic Thick/Diameter (mm) 6.3 Width (mm) 54 Height (mm) 64 Capacity (mAh) 2,700 Nominal Voltage(V) 3.80 Energy (Wh) 10.26 Cell Model ICP653443 Type Prismatic Thick/Diameter (mm) 6.5 Width (mm) 34 Height (mm) 43 Capacity (mAh) 1,100 Nominal Voltage(V) 3.70 Energy (Wh) 4.07 Cell Model ICP653850 Type Prismatic Thick/Diameter (mm) 6.5 Width (mm) 38 Height (mm) 50 Capacity (mAh) 1,530 Nominal Voltage(V) 3.70 Energy (Wh) 5.66 Cell Model ICP663450 Type Prismatic Thick/Diameter (mm) 6.6 Width (mm) 34 Height (mm) 50 Capacity (mAh) 1,330 Nominal Voltage(V) 3.70 Energy (Wh) 4.92 Cell Model ICP663864 Type Prismatic Thick/Diameter (mm) 6.6 Width (mm) 38 Height (mm) 64 Capacity (mAh) 2,100 Nominal Voltage(V) 3.80 Energy (Wh) 7.98 Cell Model ICP666480 Type Prismatic Thick/Diameter (mm) 6.6 Width (mm) 64 Height (mm) 80 Capacity (mAh) 4,452 Nominal Voltage(V) 3.80 Energy (Wh) 16.92 Cell Model ICP515149 Type Prismatic Thick/Diameter (mm) 5.1 Width (mm) 51 Height (mm) 49 Capacity (mAh) 1,680 Nominal Voltage(V) 3.80 Energy (Wh) 6.38 * Cells with specification different from the above products can be provided upon customer’s request.
-
Polymer Cell
Show specs
Cell Model, Type, Thick/Diameter(mm), Width(mm), Height(mm), Capacity(mAh), Nominal Voltage(V), Energy(Wh) Cell Model Type Thick/Diameter
(mm)Width
(mm)Height
(mm)Capacity
(mAh)Nominal
Voltage(V)Energy
(Wh)Cell Model PGF315662 Type Polymer Thick/Diameter (mm) 3.1 Width (mm) 56 Height (mm) 62 Capacity (mAh) 1,300 Nominal Voltage(V) 3.70 Energy (Wh) 4.81 Cell Model PGF3457A4 Type Polymer Thick/Diameter (mm) 3.4 Width (mm) 57 Height (mm) 104 Capacity (mAh) 2,880 Nominal Voltage(V) 3.80 Energy (Wh) 10.94 Cell Model PGF364981 Type Polymer Thick/Diameter (mm) 3.6 Width (mm) 46 Height (mm) 81 Capacity (mAh) 1,950 Nominal Voltage(V) 3.70 Energy (Wh) 7.22 Cell Model PGF405560 Type Polymer Thick/Diameter (mm) 4 Width (mm) 55 Height (mm) 60 Capacity (mAh) 1,650 Nominal Voltage(V) 3.70 Energy (Wh) 6.11 Cell Model PGF405856 Type Polymer Thick/Diameter (mm) 4 Width (mm) 58 Height (mm) 56 Capacity (mAh) 1,670 Nominal Voltage(V) 3.70 Energy (Wh) 6.18 Cell Model PGF435560 Type Polymer Thick/Diameter (mm) 4.3 Width (mm) 55 Height (mm) 60 Capacity (mAh) 1,800 Nominal Voltage(V) 3.70 Energy (Wh) 6.66 Cell Model PGF435573 Type Polymer Thick/Diameter (mm) 4.3 Width (mm) 55 Height (mm) 73 Capacity (mAh) 2,520 Nominal Voltage(V) 3.80 Energy (Wh) 9.58 Cell Model PGF444872 Type Polymer Thick/Diameter (mm) 4.4 Width (mm) 48 Height (mm) 72 Capacity (mAh) 2,170 Nominal Voltage(V) 3.80 Energy (Wh) 8.25 Cell Model PGF445560 Type Polymer Thick/Diameter (mm) 4.4 Width (mm) 55 Height (mm) 60 Capacity (mAh) 2,050 Nominal Voltage(V) 3.80 Energy (Wh) 7.79 Cell Model PGF455369 Type Polymer Thick/Diameter (mm) 4.5 Width (mm) 53 Height (mm) 69 Capacity (mAh) 2,320 Nominal Voltage(V) 3.80 Energy (Wh) 8.82 Cell Model PGF475560 Type Polymer Thick/Diameter (mm) 4.7 Width (mm) 55 Height (mm) 60 Capacity (mAh) 2,000 Nominal Voltage(V) 3.70 Energy (Wh) 7.40 Cell Model PGF505858 Type Polymer Thick/Diameter (mm) 5 Width (mm) 58 Height (mm) 58 Capacity (mAh) 2,370 Nominal Voltage(V) 3.80 Energy (Wh) 9.01 Cell Model PGF534848 Type Polymer Thick/Diameter (mm) 5.3 Width (mm) 48 Height (mm) 48 Capacity (mAh) 1,500 Nominal Voltage(V) 3.70 Energy (Wh) 5.55 Cell Model PGF595675 Type Polymer Thick/Diameter (mm) 5.9 Width (mm) 56 Height (mm) 75 Capacity (mAh) 3,000 Nominal Voltage(V) 3.70 Energy (Wh) 11.10 * Cells with specification different from the above products can be provided upon customer’s request.
| Cell Model | Type | Thick/Diameter (mm) |
Width (mm) |
Height (mm) |
Capacity (mAh) |
Nominal Voltage(V) |
Energy (Wh) |
|---|---|---|---|---|---|---|---|
| Cell Model ICP395158 | Type Prismatic | Thick/Diameter (mm) 3.9 | Width (mm) 51 | Height (mm) 58 | Capacity (mAh) 1,500 | Nominal Voltage(V) 3.80 | Energy (Wh) 5.70 |
| Cell Model ICP404251 | Type Prismatic | Thick/Diameter (mm) 4 | Width (mm) 42 | Height (mm) 51 | Capacity (mAh) 1,030 | Nominal Voltage(V) 3.80 | Energy (Wh) 3.91 |
| Cell Model ICP405158 | Type Prismatic | Thick/Diameter (mm) 4 | Width (mm) 51 | Height (mm) 58 | Capacity (mAh) 1,540 | Nominal Voltage(V) 3.80 | Energy (Wh) 5.85 |
| Cell Model ICP405362 | Type Prismatic | Thick/Diameter (mm) 4 | Width (mm) 53 | Height (mm) 62 | Capacity (mAh) 1,700 | Nominal Voltage(V) 3.80 | Energy (Wh) 6.46 |
| Cell Model ICP415168 | Type Prismatic | Thick/Diameter (mm) 4.1 | Width (mm) 51 | Height (mm) 68 | Capacity (mAh) 1,900 | Nominal Voltage(V) 3.80 | Energy (Wh) 7.22 |
| Cell Model ICP434354 | Type Prismatic | Thick/Diameter (mm) 4.3 | Width (mm) 43 | Height (mm) 54 | Capacity (mAh) 1,230 | Nominal Voltage(V) 3.70 | Energy (Wh) 4.55 |
| Cell Model ICP443858 | Type Prismatic | Thick/Diameter (mm) 4.4 | Width (mm) 38 | Height (mm) 58 | Capacity (mAh) 1,220 | Nominal Voltage(V) 3.70 | Energy (Wh) 4.51 |
| Cell Model ICP444355 | Type Prismatic | Thick/Diameter (mm) 4.4 | Width (mm) 43 | Height (mm) 55 | Capacity (mAh) 1,330 | Nominal Voltage(V) 3.70 | Energy (Wh) 4.92 |
| Cell Model ICP446584 | Type Prismatic | Thick/Diameter (mm) 4.4 | Width (mm) 65 | Height (mm) 84 | Capacity (mAh) 3,200 | Nominal Voltage(V) 3.80 | Energy (Wh) 12.16 |
| Cell Model ICP463446 | Type Prismatic | Thick/Diameter (mm) 4.6 | Width (mm) 34 | Height (mm) 46 | Capacity (mAh) 920 | Nominal Voltage(V) 3.70 | Energy (Wh) 3.40 |
| Cell Model ICP463450 | Type Prismatic | Thick/Diameter (mm) 4.6 | Width (mm) 34 | Height (mm) 50 | Capacity (mAh) 970 | Nominal Voltage(V) 3.70 | Energy (Wh) 3.59 |
| Cell Model ICP463651 | Type Prismatic | Thick/Diameter (mm) 4.6 | Width (mm) 36 | Height (mm) 51 | Capacity (mAh) 1,030 | Nominal Voltage(V) 3.70 | Energy (Wh) 3.81 |
| Cell Model ICP464656 | Type Prismatic | Thick/Diameter (mm) 4.6 | Width (mm) 46 | Height (mm) 56 | Capacity (mAh) 1,530 | Nominal Voltage(V) 3.70 | Energy (Wh) 5.66 |
| Cell Model ICP464665 | Type Prismatic | Thick/Diameter (mm) 4.6 | Width (mm) 46 | Height (mm) 65 | Capacity (mAh) 1,670 | Nominal Voltage(V) 3.70 | Energy (Wh) 6.18 |
| Cell Model ICP465156 | Type Prismatic | Thick/Diameter (mm) 4.6 | Width (mm) 51 | Height (mm) 56 | Capacity (mAh) 1,740 | Nominal Voltage(V) 3.80 | Energy (Wh) 6.61 |
| Cell Model ICP474350 | Type Prismatic | Thick/Diameter (mm) 4.7 | Width (mm) 43 | Height (mm) 50 | Capacity (mAh) 1,230 | Nominal Voltage(V) 3.70 | Energy (Wh) 4.55 |
| Cell Model ICP474354 | Type Prismatic | Thick/Diameter (mm) 4.7 | Width (mm) 43 | Height (mm) 54 | Capacity (mAh) 1,370 | Nominal Voltage(V) 3.70 | Energy (Wh) 5.07 |
| Cell Model ICP474862 | Type Prismatic | Thick/Diameter (mm) 4.7 | Width (mm) 48 | Height (mm) 62 | Capacity (mAh) 1,730 | Nominal Voltage(V) 3.70 | Energy (Wh) 6.55 |
| Cell Model ICP484462 | Type Prismatic | Thick/Diameter (mm) 4.8 | Width (mm) 44 | Height (mm) 62 | Capacity (mAh) 1,620 | Nominal Voltage(V) 3.70 | Energy (Wh) 5.99 |
| Cell Model ICP503480 | Type Prismatic | Thick/Diameter (mm) 5 | Width (mm) 34 | Height (mm) 80 | Capacity (mAh) 1,800 | Nominal Voltage(V) 3.80 | Energy (Wh) 6.84 |
| Cell Model ICP514657 | Type Prismatic | Thick/Diameter (mm) 5.1 | Width (mm) 46 | Height (mm) 57 | Capacity (mAh) 1,860 | Nominal Voltage(V) 3.80 | Energy (Wh) 7.07 |
| Cell Model ICP515155 | Type Prismatic | Thick/Diameter (mm) 5.1 | Width (mm) 51 | Height (mm) 55 | Capacity (mAh) 1,950 | Nominal Voltage(V) 3.80 | Energy (Wh) 7.41 |
| Cell Model ICP515161 | Type Prismatic | Thick/Diameter (mm) 5.1 | Width (mm) 51 | Height (mm) 61 | Capacity (mAh) 2,100 | Nominal Voltage(V) 3.80 | Energy (Wh) 7.98 |
| Cell Model ICP533640 | Type Prismatic | Thick/Diameter (mm) 5.3 | Width (mm) 36 | Height (mm) 40 | Capacity (mAh) 920 | Nominal Voltage(V) 3.70 | Energy (Wh) 3.40 |
| Cell Model ICP535156 | Type Prismatic | Thick/Diameter (mm) 5.3 | Width (mm) 51 | Height (mm) 56 | Capacity (mAh) 2,000 | Nominal Voltage(V) 3.80 | Energy (Wh) 7.60 |
| Cell Model ICP535164 | Type Prismatic | Thick/Diameter (mm) 5.3 | Width (mm) 51 | Height (mm) 64 | Capacity (mAh) 2,300 | Nominal Voltage(V) 3.80 | Energy (Wh) 8.74 |
| Cell Model ICP545165 | Type Prismatic | Thick/Diameter (mm) 5.4 | Width (mm) 51 | Height (mm) 65 | Capacity (mAh) 2,450 | Nominal Voltage(V) 3.80 | Energy (Wh) 9.31 |
| Cell Model ICP553443 | Type Prismatic | Thick/Diameter (mm) 5.5 | Width (mm) 34 | Height (mm) 43 | Capacity (mAh) 930 | Nominal Voltage(V) 3.70 | Energy (Wh) 3.44 |
| Cell Model ICP553446 | Type Prismatic | Thick/Diameter (mm) 5.5 | Width (mm) 34 | Height (mm) 46 | Capacity (mAh) 1,040 | Nominal Voltage(V) 3.70 | Energy (Wh) 3.85 |
| Cell Model ICP553450 | Type Prismatic | Thick/Diameter (mm) 5.5 | Width (mm) 34 | Height (mm) 50 | Capacity (mAh) 1,160 | Nominal Voltage(V) 3.70 | Energy (Wh) 4.29 |
| Cell Model ICP565154 | Type Prismatic | Thick/Diameter (mm) 5.6 | Width (mm) 51 | Height (mm) 54 | Capacity (mAh) 2,040 | Nominal Voltage(V) 3.80 | Energy (Wh) 7.75 |
| Cell Model ICP565156 | Type Prismatic | Thick/Diameter (mm) 5.6 | Width (mm) 51 | Height (mm) 56 | Capacity (mAh) 2,100 | Nominal Voltage(V) 3.80 | Energy (Wh) 7.98 |
| Cell Model ICP575673 | Type Prismatic | Thick/Diameter (mm) 5.7 | Width (mm) 56 | Height (mm) 73 | Capacity (mAh) 3,100 | Nominal Voltage(V) 3.80 | Energy (Wh) 11.78 |
| Cell Model ICP596080 | Type Prismatic | Thick/Diameter (mm) 5.9 | Width (mm) 60 | Height (mm) 80 | Capacity (mAh) 3,780 | Nominal Voltage(V) 3.80 | Energy (Wh) 14.36 |
| Cell Model ICP603443 | Type Prismatic | Thick/Diameter (mm) 6 | Width (mm) 34 | Height (mm) 43 | Capacity (mAh) 1,040 | Nominal Voltage(V) 3.70 | Energy (Wh) 3.85 |
| Cell Model ICP625244 | Type Prismatic | Thick/Diameter (mm) 6.2 | Width (mm) 52 | Height (mm) 44 | Capacity (mAh) 1,820 | Nominal Voltage(V) 3.80 | Energy (Wh) 6.92 |
| Cell Model ICP635464 | Type Prismatic | Thick/Diameter (mm) 6.3 | Width (mm) 54 | Height (mm) 64 | Capacity (mAh) 2,700 | Nominal Voltage(V) 3.80 | Energy (Wh) 10.26 |
| Cell Model ICP653443 | Type Prismatic | Thick/Diameter (mm) 6.5 | Width (mm) 34 | Height (mm) 43 | Capacity (mAh) 1,100 | Nominal Voltage(V) 3.70 | Energy (Wh) 4.07 |
| Cell Model ICP653850 | Type Prismatic | Thick/Diameter (mm) 6.5 | Width (mm) 38 | Height (mm) 50 | Capacity (mAh) 1,530 | Nominal Voltage(V) 3.70 | Energy (Wh) 5.66 |
| Cell Model ICP663450 | Type Prismatic | Thick/Diameter (mm) 6.6 | Width (mm) 34 | Height (mm) 50 | Capacity (mAh) 1,330 | Nominal Voltage(V) 3.70 | Energy (Wh) 4.92 |
| Cell Model ICP663864 | Type Prismatic | Thick/Diameter (mm) 6.6 | Width (mm) 38 | Height (mm) 64 | Capacity (mAh) 2,100 | Nominal Voltage(V) 3.80 | Energy (Wh) 7.98 |
| Cell Model ICP666480 | Type Prismatic | Thick/Diameter (mm) 6.6 | Width (mm) 64 | Height (mm) 80 | Capacity (mAh) 4,452 | Nominal Voltage(V) 3.80 | Energy (Wh) 16.92 |
| Cell Model ICP515149 | Type Prismatic | Thick/Diameter (mm) 5.1 | Width (mm) 51 | Height (mm) 49 | Capacity (mAh) 1,680 | Nominal Voltage(V) 3.80 | Energy (Wh) 6.38 |
* Cells with specification different from the above products can be provided upon customer’s request.
| Cell Model | Type | Thick/Diameter (mm) |
Width (mm) |
Height (mm) |
Capacity (mAh) |
Nominal Voltage(V) |
Energy (Wh) |
|---|---|---|---|---|---|---|---|
| Cell Model PGF315662 | Type Polymer | Thick/Diameter (mm) 3.1 | Width (mm) 56 | Height (mm) 62 | Capacity (mAh) 1,300 | Nominal Voltage(V) 3.70 | Energy (Wh) 4.81 |
| Cell Model PGF3457A4 | Type Polymer | Thick/Diameter (mm) 3.4 | Width (mm) 57 | Height (mm) 104 | Capacity (mAh) 2,880 | Nominal Voltage(V) 3.80 | Energy (Wh) 10.94 |
| Cell Model PGF364981 | Type Polymer | Thick/Diameter (mm) 3.6 | Width (mm) 46 | Height (mm) 81 | Capacity (mAh) 1,950 | Nominal Voltage(V) 3.70 | Energy (Wh) 7.22 |
| Cell Model PGF405560 | Type Polymer | Thick/Diameter (mm) 4 | Width (mm) 55 | Height (mm) 60 | Capacity (mAh) 1,650 | Nominal Voltage(V) 3.70 | Energy (Wh) 6.11 |
| Cell Model PGF405856 | Type Polymer | Thick/Diameter (mm) 4 | Width (mm) 58 | Height (mm) 56 | Capacity (mAh) 1,670 | Nominal Voltage(V) 3.70 | Energy (Wh) 6.18 |
| Cell Model PGF435560 | Type Polymer | Thick/Diameter (mm) 4.3 | Width (mm) 55 | Height (mm) 60 | Capacity (mAh) 1,800 | Nominal Voltage(V) 3.70 | Energy (Wh) 6.66 |
| Cell Model PGF435573 | Type Polymer | Thick/Diameter (mm) 4.3 | Width (mm) 55 | Height (mm) 73 | Capacity (mAh) 2,520 | Nominal Voltage(V) 3.80 | Energy (Wh) 9.58 |
| Cell Model PGF444872 | Type Polymer | Thick/Diameter (mm) 4.4 | Width (mm) 48 | Height (mm) 72 | Capacity (mAh) 2,170 | Nominal Voltage(V) 3.80 | Energy (Wh) 8.25 |
| Cell Model PGF445560 | Type Polymer | Thick/Diameter (mm) 4.4 | Width (mm) 55 | Height (mm) 60 | Capacity (mAh) 2,050 | Nominal Voltage(V) 3.80 | Energy (Wh) 7.79 |
| Cell Model PGF455369 | Type Polymer | Thick/Diameter (mm) 4.5 | Width (mm) 53 | Height (mm) 69 | Capacity (mAh) 2,320 | Nominal Voltage(V) 3.80 | Energy (Wh) 8.82 |
| Cell Model PGF475560 | Type Polymer | Thick/Diameter (mm) 4.7 | Width (mm) 55 | Height (mm) 60 | Capacity (mAh) 2,000 | Nominal Voltage(V) 3.70 | Energy (Wh) 7.40 |
| Cell Model PGF505858 | Type Polymer | Thick/Diameter (mm) 5 | Width (mm) 58 | Height (mm) 58 | Capacity (mAh) 2,370 | Nominal Voltage(V) 3.80 | Energy (Wh) 9.01 |
| Cell Model PGF534848 | Type Polymer | Thick/Diameter (mm) 5.3 | Width (mm) 48 | Height (mm) 48 | Capacity (mAh) 1,500 | Nominal Voltage(V) 3.70 | Energy (Wh) 5.55 |
| Cell Model PGF595675 | Type Polymer | Thick/Diameter (mm) 5.9 | Width (mm) 56 | Height (mm) 75 | Capacity (mAh) 3,000 | Nominal Voltage(V) 3.70 | Energy (Wh) 11.10 |
* Cells with specification different from the above products can be provided upon customer’s request.
Click on the button to move to the page.
Product features
It’s the perfect pack solution for a Mobile Phone
-
Smaller volume and weightBy designing packs with its unique “Maxlim” production method, Samsung SDI creates slim and compact packs.
※ Maxlim: Maximum + Slim (Samsung SDI's own pack brand) -
Improved quality and safety with a more robust battery packThe mobile phone is becoming heavier as the mobile phone trend is moving towards larger display size and higher capacity batteries. The heavier the device is, the more likely it is to suffer damage upon dropping. Samsung SDI’s battery pack enables an even more robust pack design by applying innovative new materials.
Product specifications
-
Pack
Show specs
Pack Model, Pack Capacity(Ah), Pack Voltage(V), Cell Array, Number of Cells, Cell Model, Cell Type Pack Model Pack Capacity
(Ah)Pack Voltage
(V)Cell Array Number of Cells Cell Model Cell Type Pack Model 3.7V,1.13Ah Pack Capacity (Ah) 1.13 Pack Voltage (V) 3.7 Cell Array 1S1P Number of Cells 1 Cell Model ICP553450A Cell Type Prismatic Pack Model 3.8V,2.1Ah Pack Capacity (Ah) 2.1 Pack Voltage (V) 3.8 Cell Array 1S1P Number of Cells 1 Cell Model ICP515161A Cell Type Prismatic Pack Model 3.8V,1.5Ah Pack Capacity (Ah) 1.5 Pack Voltage (V) 3.8 Cell Array 1S1P Number of Cells 1 Cell Model ICP405158A Cell Type Prismatic Pack Model 3.8V,2.9Ah Pack Capacity (Ah) 2.88 Pack Voltage (V) 3.8 Cell Array 1S1P Number of Cells 1 Cell Model PGF3457A4 Cell Type Polymer * The specifications above are for Samsung SDI's representative packs.
Samsung SDI can also provide packs with a custom specification desired by the customer.
| Pack Model | Pack Capacity (Ah) |
Pack Voltage (V) |
Cell Array | Number of Cells |
Cell Model | Cell Type |
|---|---|---|---|---|---|---|
| Pack Model 3.7V,1.13Ah | Pack Capacity (Ah) 1.13 | Pack Voltage (V) 3.7 | Cell Array 1S1P | Number of Cells 1 | Cell Model ICP553450A | Cell Type Prismatic |
| Pack Model 3.8V,2.1Ah | Pack Capacity (Ah) 2.1 | Pack Voltage (V) 3.8 | Cell Array 1S1P | Number of Cells 1 | Cell Model ICP515161A | Cell Type Prismatic |
| Pack Model 3.8V,1.5Ah | Pack Capacity (Ah) 1.5 | Pack Voltage (V) 3.8 | Cell Array 1S1P | Number of Cells 1 | Cell Model ICP405158A | Cell Type Prismatic |
| Pack Model 3.8V,2.9Ah | Pack Capacity (Ah) 2.88 | Pack Voltage (V) 3.8 | Cell Array 1S1P | Number of Cells 1 | Cell Model PGF3457A4 | Cell Type Polymer |
* The specifications above are for Samsung SDI's representative packs.
Samsung SDI can also provide packs with a custom specification desired by the customer.
Manufacturing process
Mobile Phone_Prismatic
Watch how the Samsung SDI`s Li-ion Battery cell is developed into a battery pack
